Product Details:
|
| OEM Part: | 0010-20-42594 | Material: | Medical TPU |
|---|---|---|---|
| Patient End: | DB9Pin | Monitor Connector: | Plastic 6Pin 40 Degree |
| Length: | 2.4M | Package: | 1 Pc In Bag |
| Warranty: | 6 Month Repair For Free | Application: | PM9000 Patient Monitor |
| Highlight: | PM9000 Mindray Spo2 Extension Cable,Mindray Spo2 Extension Cable 6Pin,0010-20-42594 Plastic |
||
1.Description:Mindray > Datascope Compatible SpO2 Adapter Cable - 0010-20-42594
| P/N | Compatibility | Description | Instrument connector | Sensor side connector |
| MPE016B | PM9000,9100,9200 (PM-6201,7000, 8000,M1K0,M2K0 before 2006) |
Redel6P(Dual Notch 40 )- DB9F For DB9 connector Probe |
 |
 |
2.OEM Part Number Cross References
| Manufacturer | OEM Part # |
|---|---|
| Draeger | 2606487 |
| Kontron | MXC009 |
| Mindray > Datascope | 0010-20-42594, 561A |
| Sage | E067-22M |
| Tenacore | TCEO-0116-1722 |
3.Compatibility
| Manufacturer | Model |
|---|---|
| ARI | 800B |
| Advanced Instrumentations | PM-2000A Pro, PM1000F |
| Carewell | CPM-9000T |
| Creative | PC9000, UP-6000 |
| Edan | M3A, M3B, M50, M8, M80, M8A, M8B, M9, M9A, iM50, iM60, iM8, iM80 without Nellcor OxiMax technology, iM8A, iM8B, iM9, iM9A |
| Kontron | 7138, 7840, 7845 |
| Medec | M-1000, M-1100, MEDEC-1000 |
| Mindray > Datascope | 6201, 809B, Accutorr V, DPM1, DPM2, DPM3, DPM4, DPM5, Duo, MEC 100, MEC 1000, MEC 1200, MEC 200, MEC 2000, PM 600, PM 6000 (New), PM 7000, PM 8000, PM 9000, PM 9000 Express, Passport V, Passport XG, Trio, VS 800, VS 900 |
| Penlon InterMed | PM-8000 |
| Philips | M3 |
| Venni | VI-3510P, VI-8410P |
4.Specification
| Connector type | Plastic 6Pin dual 40 |
| Cable material | medical TPU |
| Cable diameter | 4.0 cable |
| Patient end | DB9 Pin |
| Latex Free | Yes |
| OEM&ODM Service | Yes |
| Cable length | 2.4M |
| Certificate | ISO13485,CE |
| Application | extend Spo2 sensor |
| Package | 1 piece in bag |
5.Advantage:
-Mainly used in.: Nellcor SpO2 Probe;

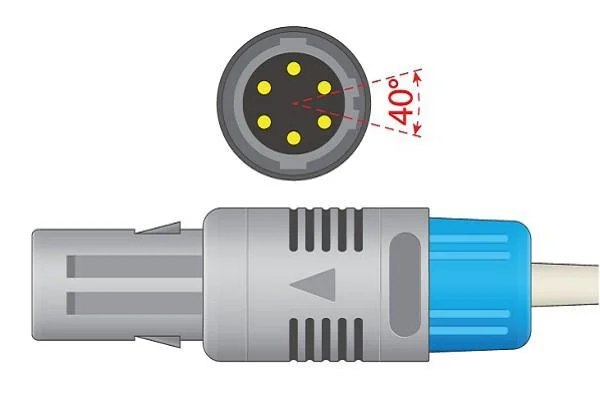

-Monitor Conn.: Plastic 6Pin dual 40;

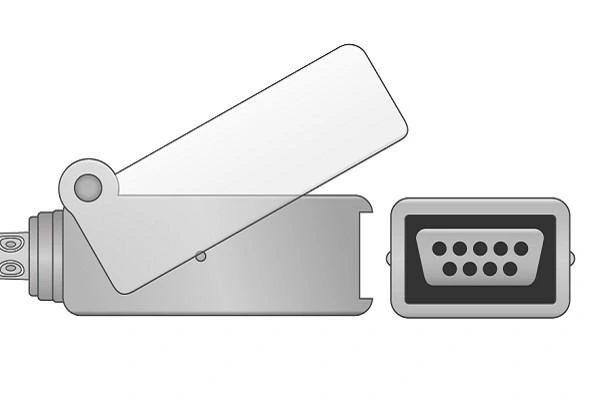

-Patient Conn. No.:DB9pin;
-Length of Probe: 2400MM ± 50MM；
-Material of Cable: TPU safety cable;
-Advantage of Cable: High quality alloy conductors with KEVLAR® reinforcement fibers for durability;
-Advantage of Pin: Gold-plated terminals(pin), for strengthen the signals’s conductivity without interference.
-Design to prevent the lid off, Effective protection of cables to connect;
-Certificate of Product: CE authentication;
-Guarantee of Product: Providing the quality assurance for 6 month, Non-human damage!

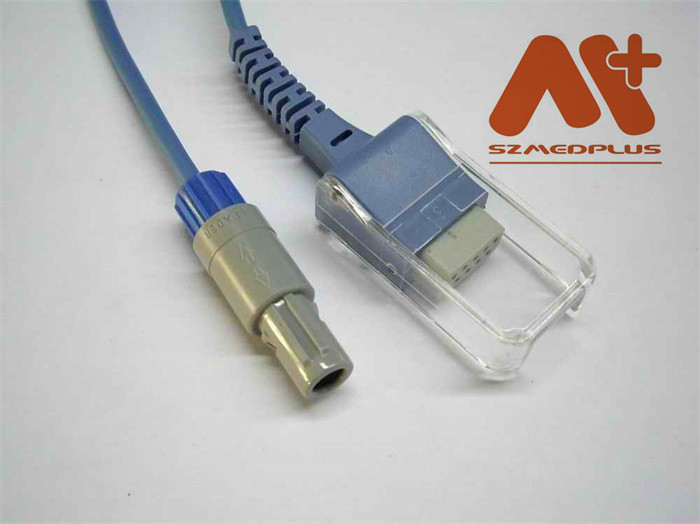

6.Image
