Product Details:
|
| OEM Part: | 0010-20-42595 | Material: | Medical TPU |
|---|---|---|---|
| Patient End: | 9Pin | Monitor Connector: | Plastic 6Pin Dual 80 |
| Length: | 2.4M | Package: | 1 Pc In Bag |
| Warranty: | 6 Month Repair For Free | Application: | DPM4, DPM5, PM 7000, PM 8000, PM 9000, PM-9000Vet, Trio |
| Highlight: | Mindray Datascope Spo2 Extension Cable,Mindray Datascope 0010-20-42595,Spo2 Extension Cable For DPM4 DPM5 |
||

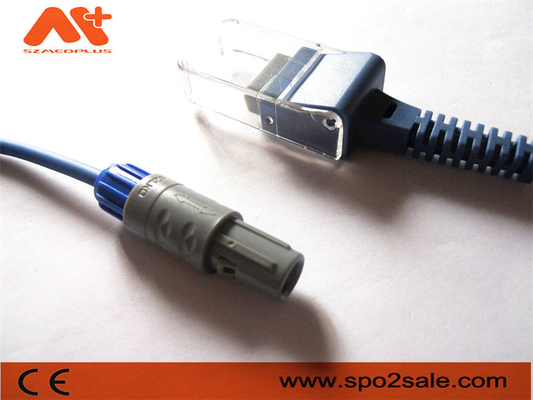

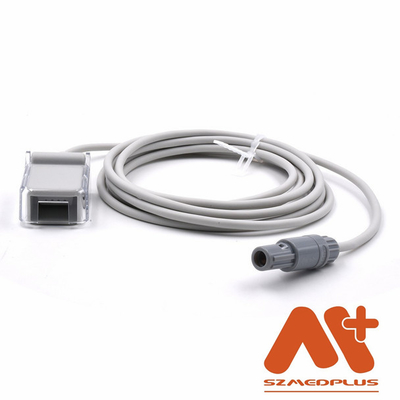

1.Description:Mindray > Datascope Compatible SpO2 Adapter Cable - 0010-20-42595
SZMEDPLUS offer:
| P/N | Compatibility | Description | Instrument connector | Sensor side connector |
| MPE016O | Mindray VS800 | Redel6P(Dual Notch 80 )- DB9F, For Nellcor Oximax |
 |
 |
2.OEM Part Number Cross References
| Manufacturer | OEM Part # |
|---|---|
| Mindray > Datascope | 0010-20-42595, 571B |
3.Compatibility
| Manufacturer | Model |
|---|---|
| Mindray > Datascope | DPM4, DPM5, PM 7000, PM 8000, PM 9000, PM-9000Vet, Trio |
4.Specification

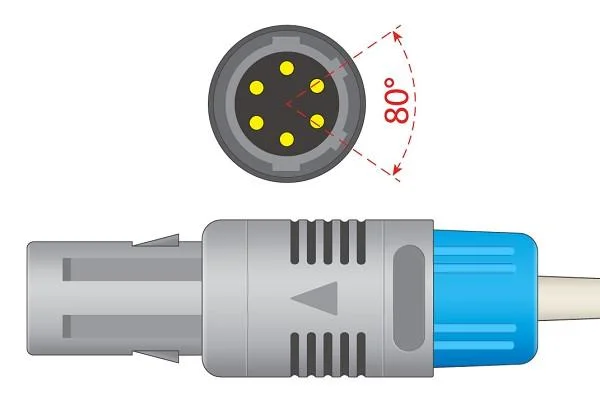

| Connector type | Plastic 6Pin dual 80 |
| Cable material | medical TPU |
| Cable diameter | 4.0 cable |

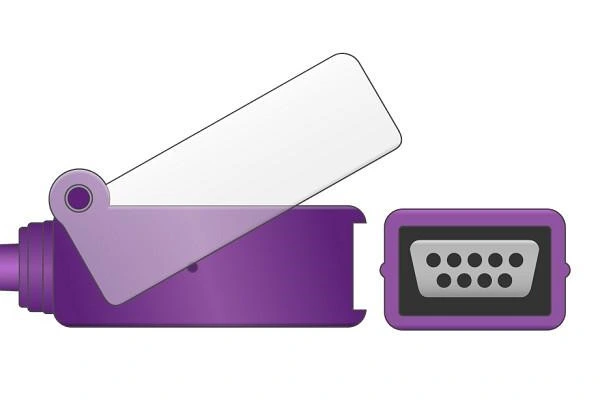

| Patient end | DB9 |
| Latex Free | Yes |
| OEM&ODM Service | Yes |
| Cable length | 2.4M |
| Certificate | ISO13485,CE |
| Application | extend Spo2 sensor |
| Package | 1 piece in bag |
5.Advantage:
-Mainly used in.: Nellcor Oximax SpO2 Probe;
-Monitor Conn.: Plastic 6Pin dual 80;
-Patient Conn. No.:9pin;
-Length of Probe: 2400MM ± 50MM；
-Material of Cable: TPU safety cable;
-Advantage of Cable: High quality alloy conductors with KEVLAR® reinforcement fibers for durability;
-Advantage of Pin: Gold-plated terminals(pin), for strengthen the signals’s conductivity without interference.
-Design to prevent the lid off, Effective protection of cables to connect;
-Certificate of Product: CE authentication;
-Guarantee of Product: Providing the quality assurance for 6 month, Non-human damage!
6.Image
