Product Details:
|
| OEM Part: | M1976A | Patient Connector: | Din Style Connector |
|---|---|---|---|
| Patient End: | Clip,AHA | Length: | 3ft |
| Cable Diameter: | 2.6mm Cable | Lead: | 5 Lead |
| Application: | Philips 12Pin Patient Monitor | ||
| Highlight: | CFS Philips Cardiac Monitor Cables,Cardiac Monitor Cables 5 Lead,5 Lead Clip V2-V6 M1976A |
||
1.Description: Philips Compatible 5 lead clip V2-V6 ECG Leadwire - M1976A
2.OEM Part Number Cross References
| Manufacturer | OEM Part # |
|---|---|
| Curbell | LW-05BV-29AS-0000 (29 inch) |
| Philips | M1976A, 989803125881 |
| Sage | L01V-05-29P |
3.Compatibility
| Manufacturer | Model |
|---|---|
| Bexen Cardio | Reanibex 700 |
| Biolight | M7000, M8500, M9500, Q Series |
| Invivo | 101, 360SL, 450SL, 521A, Escort 100, Escort 101, Escort 102, Escort 200, Escort 300, PortaPak 1000, PortaPak 80, PortaPak 90, Prism |
| Ivy Biomedical | 101, 7800, Cardiac Trigger Monitor 3150 |
| Newtech | NT3A |
| Nihon Kohden | BSM-8301A, BSM-8302A, BSM-8500A, BSM-8502A, NT3B, OEC-6102A (s/n>20156), OEC-6105A (s/n>20226), OEC-7102A, OEC-8108A, TEC-5200A (s/n>20421), TEC-7100A, TEC-7200A, TEC-7300A |
| PaceTech | MiniMax 4000CL, Minipack 300, Minipack 3000, Minipack 3100, Vitalmax 2100, Vitalmax 2200, Vitalmax 4000, Vitalmax 4000 Modular, Vitalmax 4000CL, Vitalmax 4100, Vitalmax 4100CL, Vitalmax 800 Plus |
| Philips | 43100A, 43110A, 43120A, 78352C, 78354C, 78834C, 862474 C3, Affiniti 30, Affiniti 50, Affiniti 70, Affiniti CVx, Agilent, Agilent 50XM, CX50, EPIQ, Envisor, HD15, HeartStart MRx, Heartstart, IE33, IntelliVue, IntelliVue MX500, IntelliVue MX750, IntelliVue MX800, IntelliVue MX850, M1001A, M1002A, M1165A, M1166A, M1167A, M1175A, M1177A, M1204A, M1205A, M1264A, M1275A Transport, M1276A, M1280A, M1722A, M1722B, M1723A, M1723B, M2, M2475B, M2601A, M3, M3000A, M3001A, M4, M4735A, MMS X2, MP 20, MP 30, MP 50, MP 60, MP 70, SureSigns VM6, SureSigns VM8, V24E, VM4, VM6, VM8, Viridia, М3046А |
| Solaris | NT3C, NT3E, NT3F |
| Spacelabs | 400, 500, 600, 900, 90300, 90303B, 90308, 90408, 90425, 90428, 90431, 90432, 90470, 90600, 90700, 90701, 90721, 90724, PC Bedside, PCMS, TEK-208, TEK-408, TEK-413, TEK-414, TEK-511, TEK-512, TEK-514, TEK-5214045 |
| Stryker > MEDTRONI > Physio Control | Lifepak 6, VSM-1ESF |
| Welch Allyn | 242, Propaq Encore 206EL |
4.Specification
| Connector | Din style |
| Cable material | medical TPU |
| Cable diameter | 2.6 mm |
| Patient end | Snap |
| Latex Free | Yes |
| Number of Leadwires | 5 lead |
| Standard | AHA |
| Certificate | ISO13485,CE |
| Package | 1 pc in bag |
| Warranty | 6 month for free |
5.Advantage:
-Patient Conn.: Din styple;
-Patient Conn.: Clip-Style;
-Specification of lead wires: 5 leads;
-Length of Probe: 900MM ± 50MM；
-Color Standard of lead wires: AAMI-American color standard;
-Material of Cable: TPU safety cable;
-Advantage of Cable: High quality alloy conductors with KEVLAR® reinforcement fibers for durability;
-Advantage of Pin: Gold-plated terminals(pin), for strengthen the signals’s conductivity without interference.
-Design to prevent the lid off, Effective protection of cables to connect;
-Certificate of Product: CE authentication;
-Guarantee of Product: Providing the quality assurance for 6 month, Non-human damage!

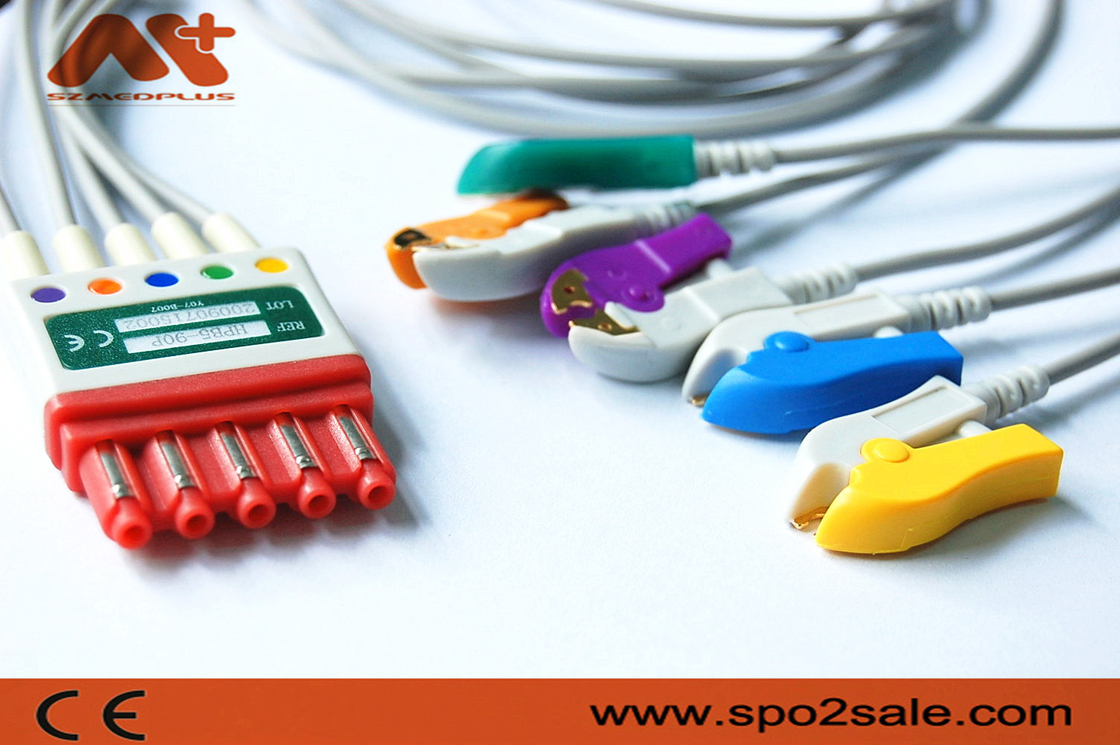

6.Image
