Product Details:
|
| OEM Part: | 0012-00-1745-01 | Monitor Connector: | 12Pin |
|---|---|---|---|
| Patient End: | Twin Pin Connector | Length: | 2.5M |
| Lead: | 3/5 Lead | Application: | Passport V, V-Series, V12, V21 Patient Monitor |
| Highlight: | Datascope Compatible Mindray ECG Trunk Cable,Mindray ECG Trunk Cable 2.5M,2.5M 0012-00-1745-01 |
||
1.Description: Mindray > Datascope Compatible ECG Trunk Cable - 0012-00-1745-01
2.OEM Part Number Cross References
| Manufacturer | OEM Part # |
|---|---|
| AMC | CB-86531R (10 ft) |
| Mindray > Datascope | 0012-00-1745-01 (10 ft (3 meters)), 0012-00-1745-02 (20 ft (6 meters)) |
3.Compatibility
| Manufacturer | Model |
|---|---|
| Mindray > Datascope | Passport V, V-Series, V12, V21 |
4.Specification
| Connector | 12Pin |
| Cable material | medical TPU |
| Cable diameter | 5.0 mm |
| Patient end | Twin Pin style |
| Latex Free | Yes |
| Number of Leadwires | 3/5 lead |
| Standard | AHA |
| Certificate | ISO13485,CE |
| Package | 1 pc in bag |
| Warranty | 6 month for free |
5.Advantage:
-Monitor Conn.: 12Pin styple;
-Patient Conn.: Twin Pin-Style;
-Specification of lead wires: 5 leads;
-Length of Probe: 2500MM ± 50MM；
-Color Standard of lead wires: AAMI-American color standard;
-Material of Cable: TPU safety cable;
-Advantage of Cable: High quality alloy conductors with KEVLAR® reinforcement fibers for durability;
-Advantage of Pin: Gold-plated terminals(pin), for strengthen the signals’s conductivity without interference.
-Design to prevent the lid off, Effective protection of cables to connect;
-Certificate of Product: CE authentication;
-Guarantee of Product: Providing the quality assurance for 6 month, Non-human damage!

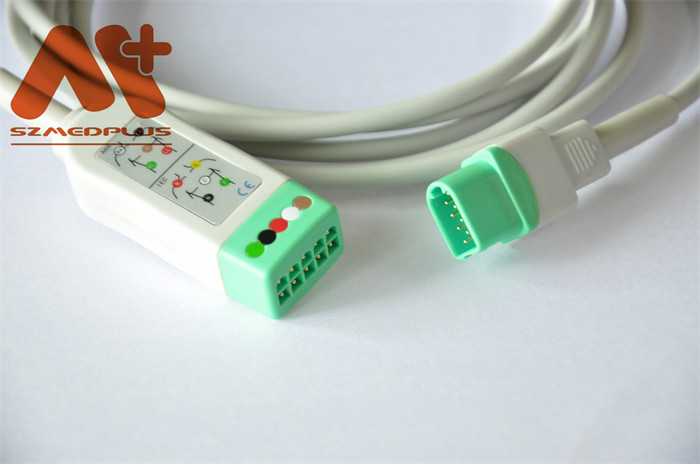

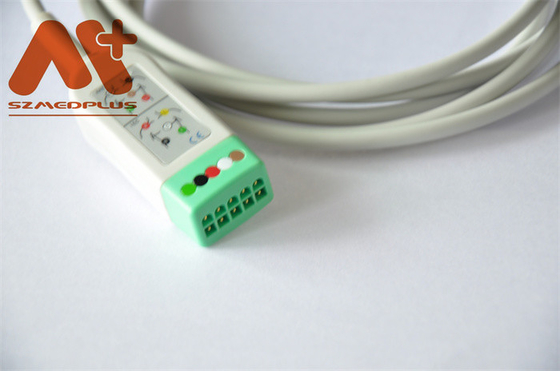

6.Image
