Product Details:
|
| OEM Part: | 545316 | Patient Connector: | Twin Pin Connector |
|---|---|---|---|
| Patient End: | Clip IEC | Length: | 3ft |
| Lead: | 5 Lead | Application: | AS/3, Aestiva/5, CS/3, Cardiocap II, Cardiocap/5, E-PRESTN, Satelite Plus S/5 |
1.Description: Datex Ohmeda Compatible 5 Lead Clip ECG Leadwire - 545316
2.OEM Part Number Cross References
| Manufacturer | OEM Part # |
|---|---|
| Datex Ohmeda | 545316 (75cm) |
3.Compatibility
| Manufacturer | Model |
|---|---|
| Datex Ohmeda | AS/3, Aestiva/5, CS/3, Cardiocap II, Cardiocap/5, E-PRESTN, Satelite Plus S/5 |
| Draeger | Narkomed 6400 |
| GE Healthcare > Critikon > Dinamap | Carescape B450, Carescape B650, Carescape B850, Pro 1000, Procare B40 |
| GE Healthcare > Marquette | Dash 1000, Dash 2500, Dash 4000, Dash 5000, Dash PRO 2000, Dash PRO 3000, Dash PRO 4000, Eagle, MAC-Lab, PDM Module, Solar 3000, Solar 8000, Solar 9500, Tram 100, Tram 200, Tram 300, Tram 400, Tram 451, Tram 500, Tram 600, Tram 800, Unity Systems |
| GE Healthcare | Logiq 5, Logiq 7, Vivid e9, Vivid i |
4.Specification
| Patient Connector | Twin Pin |
| Cable material | medical TPU |
| Cable diameter | 2.6 mm |
| Patient end | Clip |
| Latex Free | Yes |
| Number of Leadwires | 5 lead |
| Standard | IEC |
| Certificate | ISO13485,CE |
| Package | 1 pc in bag |
| Warranty | 6 month for free |
5.Advantage:
-Patient Conn.: Twin Pinstyple;
-Patient Conn.: Clip-Style;
-Specification of lead wires: 5 leads;
-Length of Probe: 1000MM ± 50MM；
-Color Standard of lead wires: AAMI-American color standard;
-Material of Cable: TPU safety cable;
-Advantage of Cable: High quality alloy conductors with KEVLAR® reinforcement fibers for durability;
-Advantage of Pin: Gold-plated terminals(pin), for strengthen the signals’s conductivity without interference.
-Design to prevent the lid off, Effective protection of cables to connect;
-Certificate of Product: CE authentication;
-Guarantee of Product: Providing the quality assurance for 6 month, Non-human damage!

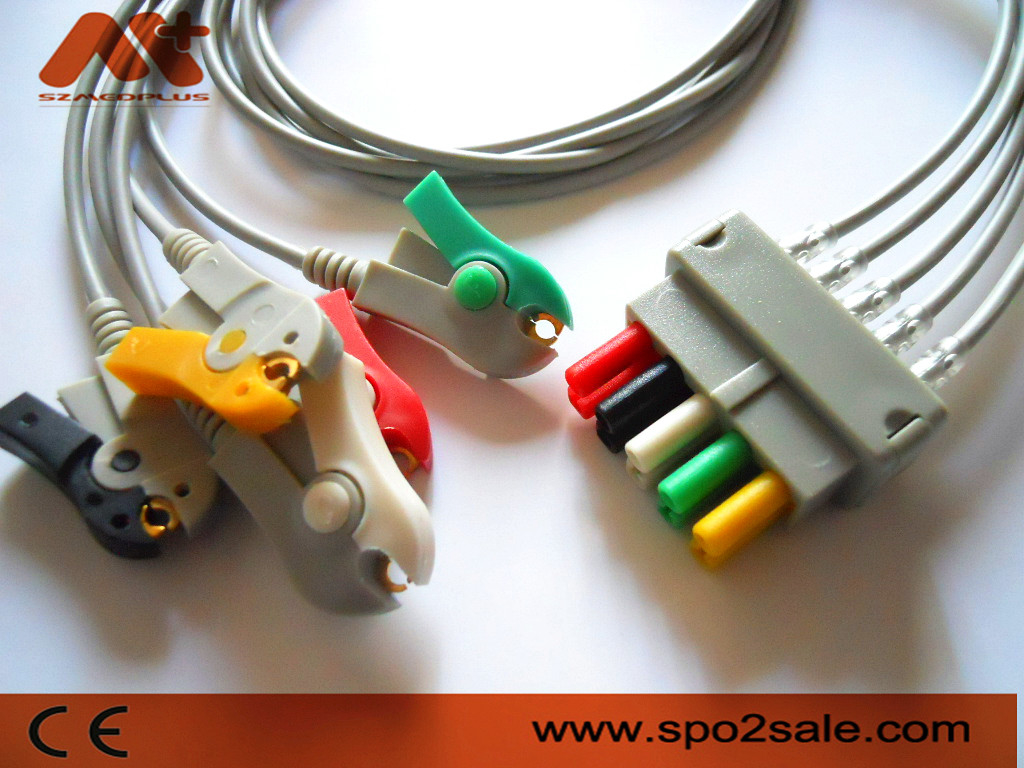

6.Image
