Product Details:
|
| OEM Part: | M1196A | Patient End: | Adult Finger Clip |
|---|---|---|---|
| Connector: | 8Pin | Length: | 10ft |
| Sensor Wavelength: | 660/905 | Application: | Philips 8Pin Patient Monitor |
| Highlight: | CFDA Philips M1196A,Philips M1196A Adult,Hospital Finger Clip SpO2 Sensor |
||

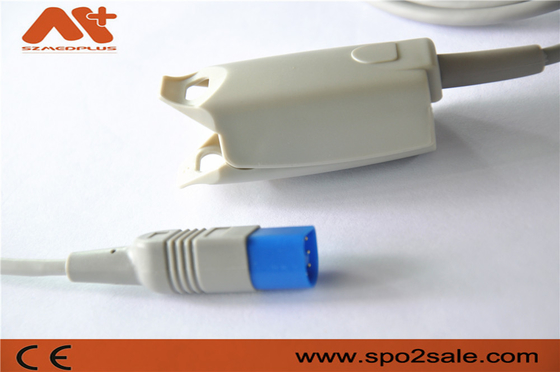

1.Description: HP Compatible Adult Finger Clip Direct-Connect SpO2 Sensor - M1196A
2.OEM Part Number Cross References
| Manufacturer | OEM Part # |
|---|---|
| Beta Biomed | B505-1006V-10 |
| HP | M1196A, 989803128631, 989803174381 (2 m), M1196S (2 m), 989803205901 |
| Sage | P01-30M |
3.Compatibility
| Manufacturer | Model |
|---|---|
| Goldway | G30, G40 |
| HP | C1, C3, FM20, FM30, FM40, FM50, HP Viridia 24C, HeartStart MRx, IntelliVue MP5, M2705A, M3, M3001A, M3001A A01, M3001A A01C06, M3001A A01C12, M3001A A01C18, M4, M4841A, MP 20, MP 30, MP 40, MP 50, MP 60, MP 70, MP 80, MP 90, HP Heartstart defibrillator and IntelliVue, SureSigns VS2, SureSigns VS2+, SureSigns VS3, SureSigns VS4, VM4, VM6, VM8, Viridia 24C |
| Solaris | NT2A, NT2C |
4.Specification
| Connector type | 8Pin |
| Cable material | medical TPU |
| Cable diameter | 4.0 |
| Patient end | Adult finger Clip |
| Latex Free | Yes |
| Wavelength | 660/905 |
| Cable length | 10ft |
| Certificate | ISO13485,CE |
| Application | Spo2 |
| Patient size | Adult |
| Emitting light wavelength | 660/905-2 | |
| Cable Material | TPU jacket, 4.0mm diameter | |
| Sensor Type | Adult | |
| Spo2 testing range | 70%-100% | |
| Storage and transport environment | -10°C~+40°C | |
| Operating temperature | 5°C-40°C | |
| Humidity | 0-80% | |
| Pressure | 86kpa-106kpa | |
| Accuracy | Spo2 | ±2%(90%-100%) |
| ±3%(70%-89%) | ||
| unspecified(0-69%) | ||
| Pulse rate | ±1 bpm(30-59bpm) | |
| ±2 bpm(60-149bmp) | ||
| ±3 bpm(150-245bmp) | ||

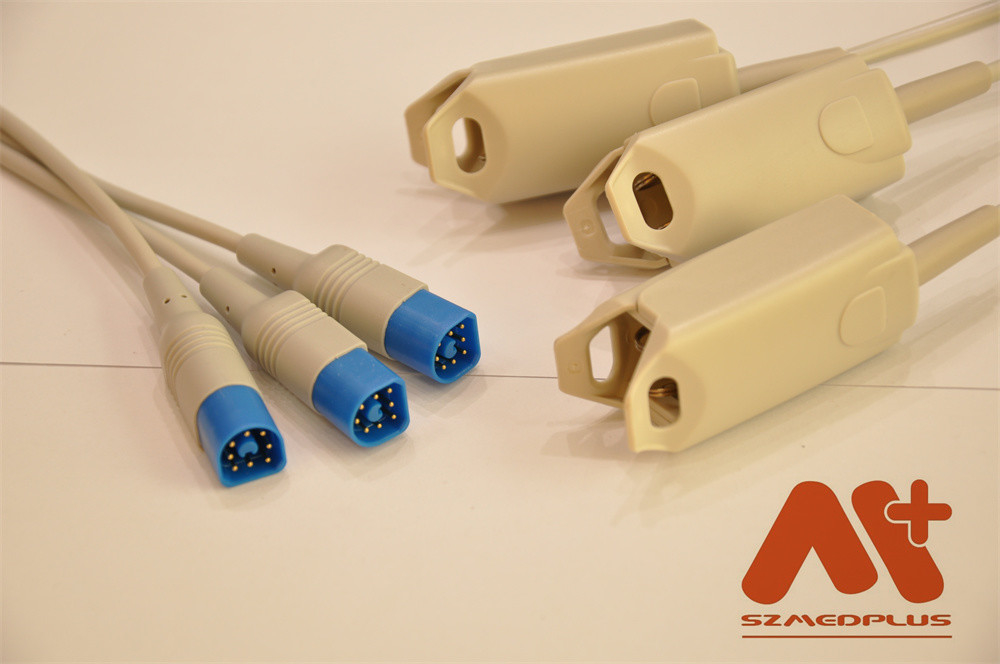

5.Image
