Product Details:
|
| OEM Part: | M1191BL | Patient End: | Adult Soft Tip |
|---|---|---|---|
| Connector: | 8Pin | Length: | 10ft |
| Sensor Wavelength: | 660/905 | Application: | Philips 8Pin Patient Monitor |
| Highlight: | CE Adult Philips M1191BL,Philips M1191BL 8 Pin,8 Pin Soft Tip SpO2 Sensor |
||
1.Description: HP Compatible Adult Soft Tip Direct-Connect SpO2 Sensor - M1191BL
2.OEM Part Number Cross References
| Manufacturer | OEM Part # |
|---|---|
| AMC | PR-A900-1006V |
| Envitec | R-2414-30, R-2414-30plus (Autoclavable) |
| Pacific Medical | NSPH200 |
| HP | M1191BL, M1191AL |
| Tenacore | TP1503SP-10 |
3.Compatibility
| Manufacturer | Model |
|---|---|
| Goldway | G30, G40 |
| HP | C1, C3, FM20, FM30, FM40, FM50, HP Viridia 24C, HeartStart MRx, IntelliVue MP5, M2705A, M3, M3001A, M3001A A01, M3001A A01C06, M3001A A01C12, M3001A A01C18, M4, M4841A, MP 20, MP 30, MP 40, MP 50, MP 60, MP 70, MP 80, MP 90, HP Heartstart defibrillator and IntelliVue, SureSigns VS2, SureSigns VS2+, SureSigns VS3, SureSigns VS4, VM4, VM6, VM8, Viridia 24C |
| Solaris | NT2A, NT2C |
4.Specification
| Connector type | 8Pin |
| Cable material | medical TPU |
| Cable diameter | 4.0 |
| Patient end | Adult Soft Tip |
| Latex Free | Yes |
| Wavelength | 660/905 |
| Cable length | 10ft |
| Certificate | ISO13485,CE |
| Application | Spo2 |
| Patient size | Adult |
| Emitting light wavelength | 660/905-2 | |
| Cable Material | TPU jacket, 4.0mm diameter | |
| Sensor Type | Adult | |
| Spo2 testing range | 70%-100% | |
| Storage and transport environment | -10°C~+40°C | |
| Operating temperature | 5°C-40°C | |
| Humidity | 0-80% | |
| Pressure | 86kpa-106kpa | |
| Accuracy | Spo2 | ±2%(90%-100%) |
| ±3%(70%-89%) | ||
| unspecified(0-69%) | ||
| Pulse rate | ±1 bpm(30-59bpm) | |
| ±2 bpm(60-149bmp) | ||
| ±3 bpm(150-245bmp) | ||

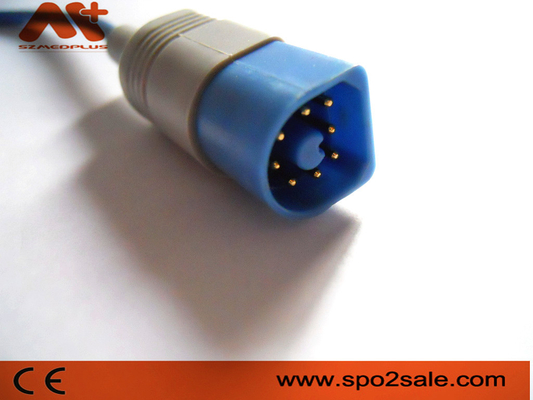

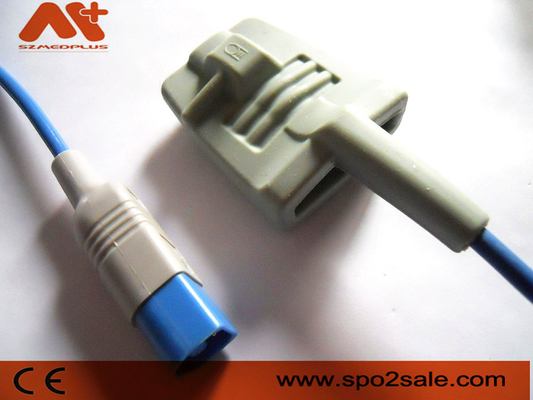

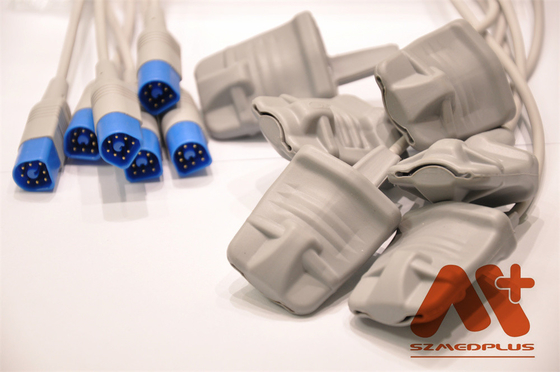

5.Image
